    Accessibility - Round handrail
    Ergonomic handrail providing high quality grip and fitting any building

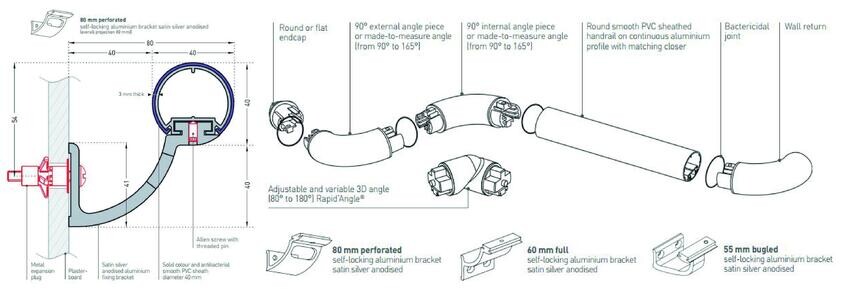

    • Modularity: 17 accessories, technical solutions for stairs and service ducts
    • PVC sheath already installed on the aluminium profile
    • Closer and accessories matched with the smooth PVC profile
    • Easy cleaning due to perfect roundness and smooth continuous surface
    • Fight against bacteria thanks to bactericidal joints and antibacterial smooth material
    • Model: Escort PVC sheathed round handrail
    • Diameter: 40 mm
    • Length: 4 m
    • Overall projection: 80 mm or 90 mm
    • Stand-off from wall: 40 mm or 50 mm
    • Material: Antibacterial and Bs2d0 fire-rated PVC, solid colour, on continuous aluminium section, bactericidal joints

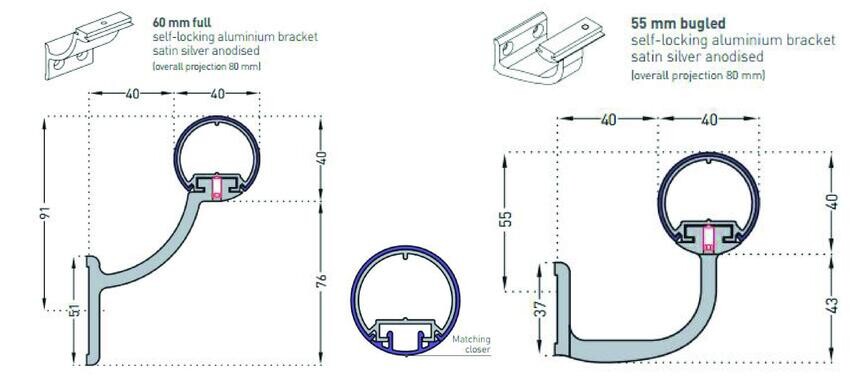

    • Fixing components: 2-point self-locking brackets, satin silver anodised aluminium, screwed to wall at 1.20 m centres (0.80 m centres in heavy traffic areas and on light partitions like plasterboard)
    • 39 colours: 28 in stock and 11 on command



    more less

    Colors

    Discover our decors
    and colours

    Results : 39

    Filter_colors
    Chalk
    0001 Chalk
    Gravel
    0002 Gravel
    Clay
    0003 Clay
    Granite
    0004 Granite
    Schist
    0005 Schist
    Ivory
    0006 Ivory
    Wicker
    0007 Wicker
    Sand
    0008 Sand
    Bark
    0010 Bark
    Pebble
    0011 Pebble
    Greige
    0013 Greige
    Cinnamon
    0014 Cinnamon
    Glacier
    0016 Glacier
    Azure
    0018 Azure
    Denim
    0020 Denim
    Straw
    0021 Straw

    Documents

    Discover the documents at your disposal for your projects

    Guides
    Download Select
    SPM Wall protections & handrails - 2019 catalog
    27,03 Mo
    Cards
    Download Select
    Escort PVC Sheathed - Card
    465 Ko
    Installation guidelines contract
    Download Select
    406 - Installation Guidelines - SPM wall protections & handrails
    6,81 Mo
    Installation Guidelines - SPM - Curving
    548 Ko
    Product description wall
    Download Select
    Escort PVC Sheated - Product Specification
    284 Ko
    Escort with PVC sheath - Commercial description
    120 Ko
    Escort with PVC sheath - Product description
    136 Ko
    Technical datasheets wall
    Download Select
    Escort with PVC sheath - Technical datasheet
    34 Ko
