Product-range WallsHandrailsEscort Anodised

Escort Anodised

Contact an expert

Escort Anodised

Specifications

Elegance - Hygiene
Elegant aluminium finish handrail ideal for corridors or stairs

Modularity: 17 accessories, technical solutions for stairs and service ducts
Closer matched with the anodised profile and providing a continuous ‘easy to clean’ surface
Fight against bacteria thanks to bactericidal joints and antibacterial smooth material

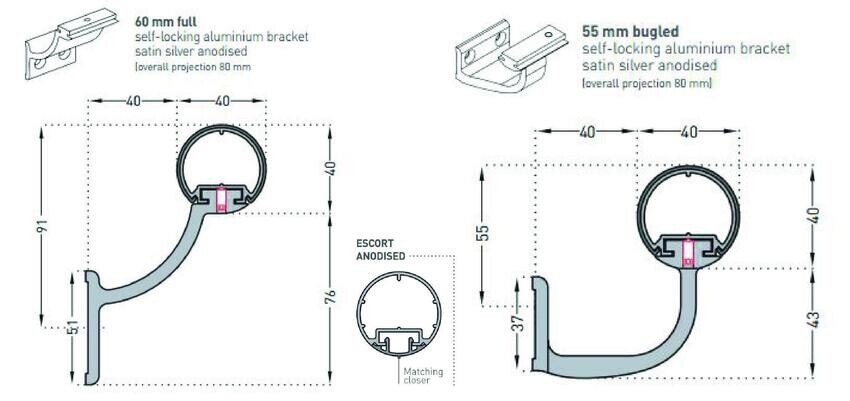

Model: Escort anodised round handrail
Diameter: 40 mm
Length: 4 m
Overall projection: 80 mm or 90 mm
Stand-off from wall: 40 mm or 50 mm
Material: 10 micron satin silver anodised aluminium
Fixing components: 2-point self-locking brackets, satin silver anodised aluminium, screwed to wall at 1.20 m centres (0.80 m centres in heavy traffic areas and on light partitions like plasterboard)
Colours: Satin silver anodised. Coating on request

Discover the documents at your disposal for your projects

Guides

Download Select

SPM Wall protections & handrails - 2019 catalog

27,03 Mo

Cards

Download Select

Escort Anodised - Card

317 Ko

Installation guidelines contract

Download Select

406 - Installation Guidelines - SPM wall protections & handrails

6,81 Mo

Installation Guidelines - SPM - Curving

548 Ko

Product description wall

Download Select

Escort Anodised - Commercial description

243 Ko

Escort Anodised - Product description

139 Ko

Escort Anodised - Product Specification

375 Ko

Technical datasheets wall

Download Select

Escort Anodised - Technical datasheet

34 Ko
