Specifications

  • Walls
  • Handrails

Exclusive trilobed form - validated by ergonomists
Handrail with an unique design throughout the building, whatever the level of impact resistance required

  • Combines design, ergonomics and high impact resistanc
  • Provides an excellent grip thanks to its exclusive trilobed shape

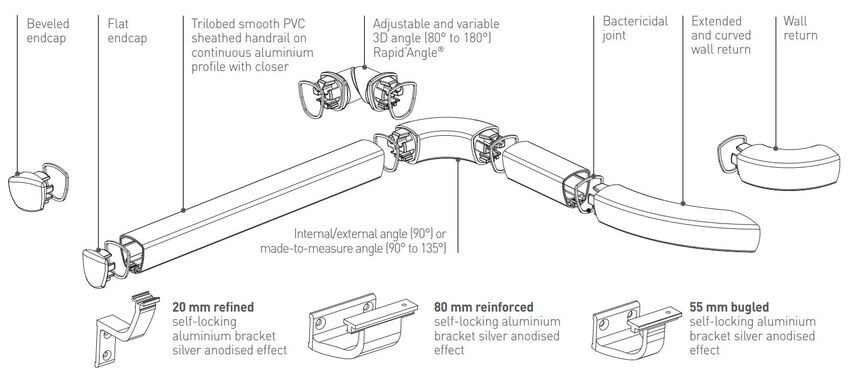

  • Endless combinations thanks to its large choice of accessories
  • Also avalaible in a standard version
  • Proven resistance

Bs2d0 - Heavy traffic - Moderate traffic - 100% antibacterial - Sustainable formulation

Technical description

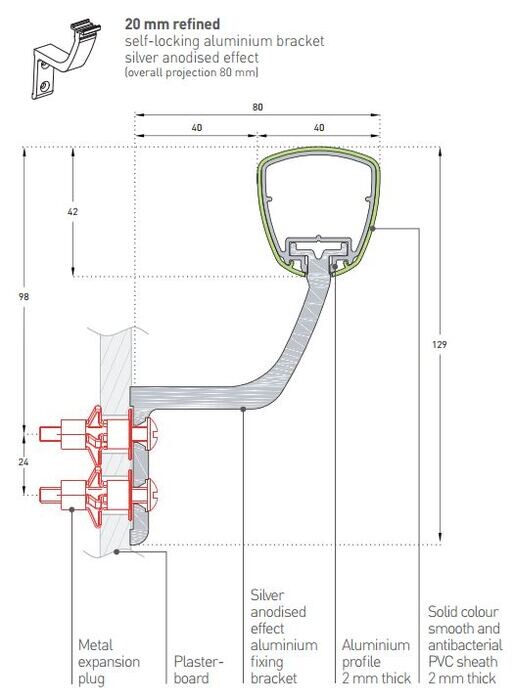

Model: PVC sheathed Linea'Touch trilobed handrail

  • Cross section: height 42 mm x width 40 mm
  • Length: 4 m
  • Overall Projection: 80 mm (90 mm on request)
  • Stand-off frow wall: 40 mm (50 mm on request)
  • Fixing components: refined, bugled or reinforced, 2 point self-locking aluminium brackets, silver anodised effect, screwed to the wall every 1.20 m (0.80 m centres in heavy traffic areas and on light partitions like plasterboard)
  • Colours: 31 standard
more less

Colors

Discover our decors
and colours

Results : 31

Filter_colors
0001 Chalk
0002 Gravel
0003 Clay
0004 Granite
0005 Schist
0006 Ivory
0007 Wicker
0008 Sand
0010 Bark
0011 Pebble
0013 Greige
0014 Cinnamon
0015 Lavender Grey
0016 Glacier
0017 Bluebell
0018 Azure
0019 Ultramarine
0020 Denim
0021 Straw
0022 Apricot
0023 Meadow
0024 Bamboo
0025 Emerald
0027 Melon
0028 Poppy
0029 Garnet
0030 Iris
0009 Sienna
0031 Alum
0033 Slate
0032 Flint

Documents

Discover the documents at your disposal for your projects

Cards
Download Select
Linea'Touch PVC Sheathed - Card
396 Ko
Guides
Download Select
SPM Wall protections & handrails - 2019 catalog
Installation guidelines contract
Download Select
406 - Installation Guidelines - SPM wall protections & handrails
6,81 Mo
Installation Guidelines - SPM - Curving
548 Ko
Installation Guidelines - SPM - Linea Range
1,71 Mo
Linea range - Installation guidelines
1,46 Mo
Product description wall
Download Select
Linea'Touch PVC Sheated - Product Specification
261 Ko
Linea'Touch with PVC sheath - Commercial description
237 Ko
Linea'Touch with PVC sheath - Product description
68 Ko
Technical datasheets wall
Download Select
Linea'Touch with PVC sheath - Technical datasheet
119 Ko
