    Vertical Design Drains 600 & 900 MM

    Specifications

    Rectangular vertical floor trap for vynil floorcoverings of Shower System

    • Wet rooms
    • Shower Accessories

    The vertical design drain is a rectangular drain with a vertical outlet of diameter 75mm. The water flow is about 0.8L/s.

    This drain is available in size 600 mm and size 900 mm and has 3 grates colours: stainless steel, black, and gold.

    Important:

    Please note that this design drain is delivered without a grate. The compatible grates can be viewed below and ordered with the following codes.

    Black & Gold grates :

    • Code for grate 600 mm : 090R
    • Code for grate 900 mm : 090S

    Steel grate :

    • Code for grate 600 mm : 090P
    • Code for grate 900 mm : 090Q

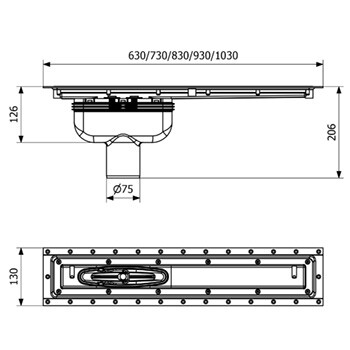

    • Edge to edge grate length: 630 or 930 mm
    • Height: 206 mm
    • Width: 130 mm
    • Diameter of outlet: 75 mm
    more less

    Colors

    Discover our decors
    and colours

    Results : 3

    Filter_colors
    Black
    0001 Black
    Gold
    0002 Gold
    Steel
    0001 Steel

    Documents

    Discover the documents at your disposal for your projects

    Technical datasheets
    Download Select
    Vertical Design Drain - Technical Datasheet
    53 Ko

    Products

    Vertical Design Drain 600 MM

    Code : 090N0001

    Width : 600 mm

    Packaging : Unit

    Vertical Design Drain 900 MM

    Code : 090O0001

    Width : 900 mm

    Packaging : Unit
